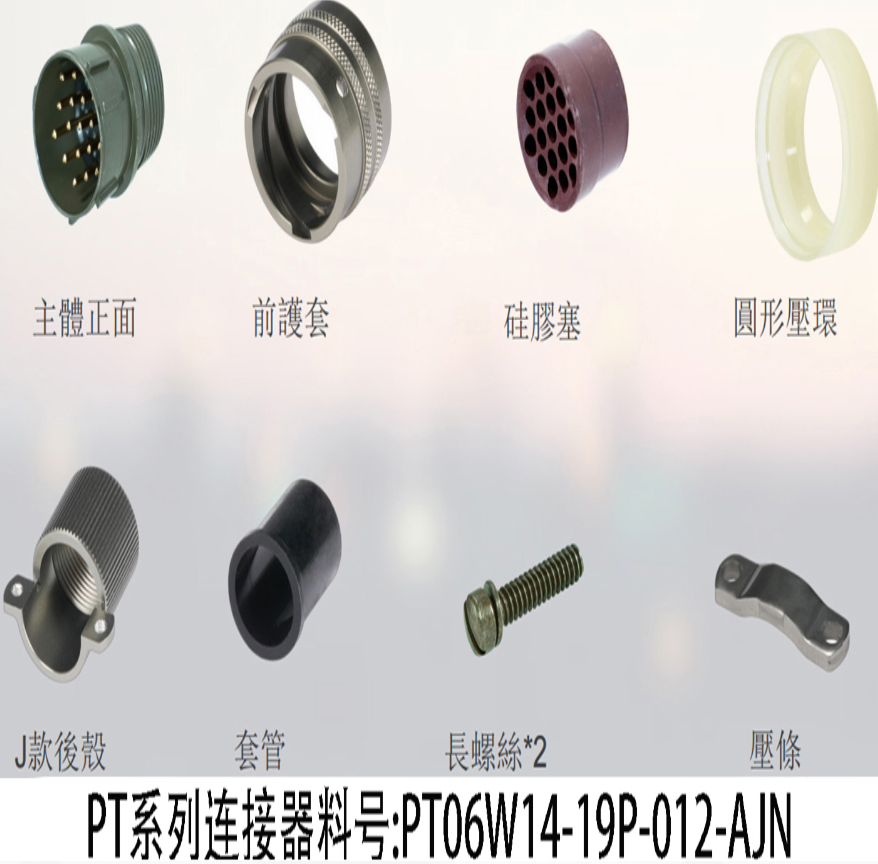

PT06W14-19P-012-AJN 19-Pin Straight Plug

PT06W14-19P-012-AJN 19-Pin Straight Plug

19-pin straight circular plug with W-style backshell for industrial power and signal connections

Also known as
19-Pin Straight PlugIndustrial Circular ConnectorAutomation Equipment ConnectorCircular Power Connector
Product specification
Part number: PT06W14-19P-012-AJN
Contact configuration: 19-pin
Connector type: straight circular plug
Backshell: W-style
Insulation resistance: minimum 5,000 MOhm at ambient temperature
Operating temperature: -55 C to +125 C
Mechanical life: minimum 500 mating cycles
Part number
PT06W14-19P-012-AJN
Materials
Shell: aluminum alloy, Insulator: fluororubber, Contacts: copper alloy, Seals: silicone, Surface finish: green chromate conversion coating, with gold, silver, or tin contact plating

Selling Description

A cost-effective alternative to high-end circular connectors, providing reliable assembly performance, electrical conductivity, long service life, and repeated mating durability.

Application

Servo motors
Industrial robots
Automation equipment
Medical equipment
Power and signal transmission
