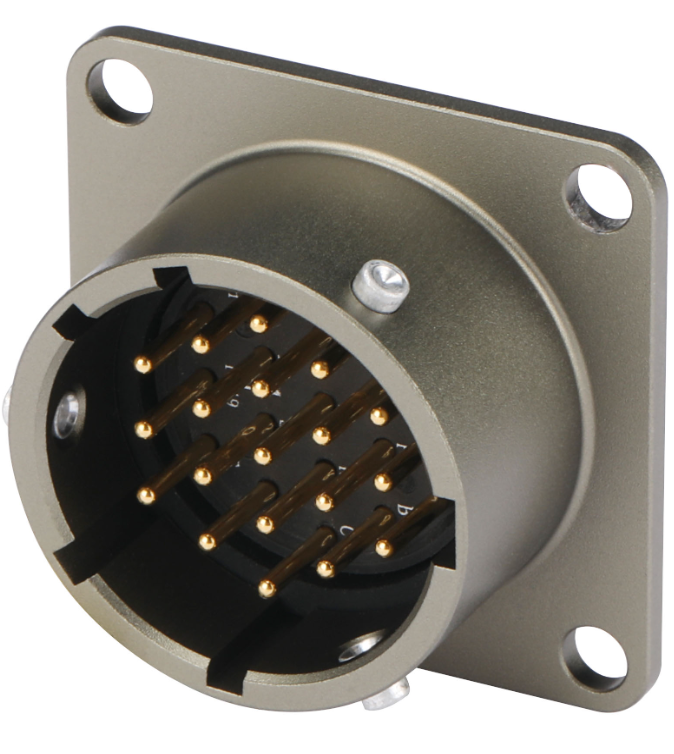

PT02E14-19P-001-AJN 19-Pin Flange Mount Plug

PT02E14-19P-001-AJN 19-Pin Flange Mount Plug

19-pin flange-mount circular plug for industrial power and signal connections

Also known as
19-Pin Flange Mount PlugIndustrial Circular ConnectorAutomation Equipment ConnectorCircular Power Connector
Product specification
Part number: PT02E14-19P-001-AJN
Contact configuration: 19-pin
Mounting: flange mount
Connector type: circular plug
Insulation resistance: minimum 5,000 MOhm at ambient temperature
Operating temperature: -55 C to +125 C
Mechanical life: minimum 500 mating cycles
Part number
PT02E14-19P-001-AJN
Materials
Shell: aluminum alloy, Insulator: fluororubber, Contacts: copper alloy, Seals: silicone, Surface finish: green chromate conversion coating, with gold, silver, or tin contact plating

Selling Description

A cost-effective alternative to high-end circular connectors, providing reliable assembly performance, electrical conductivity, long service life, and repeated mating durability.

Application

Servo motors
Industrial robots
Automation equipment
Medical equipment
Power and signal transmission
